P34A/P34F Series
50 tons per day

P34A Series
50 tons per day

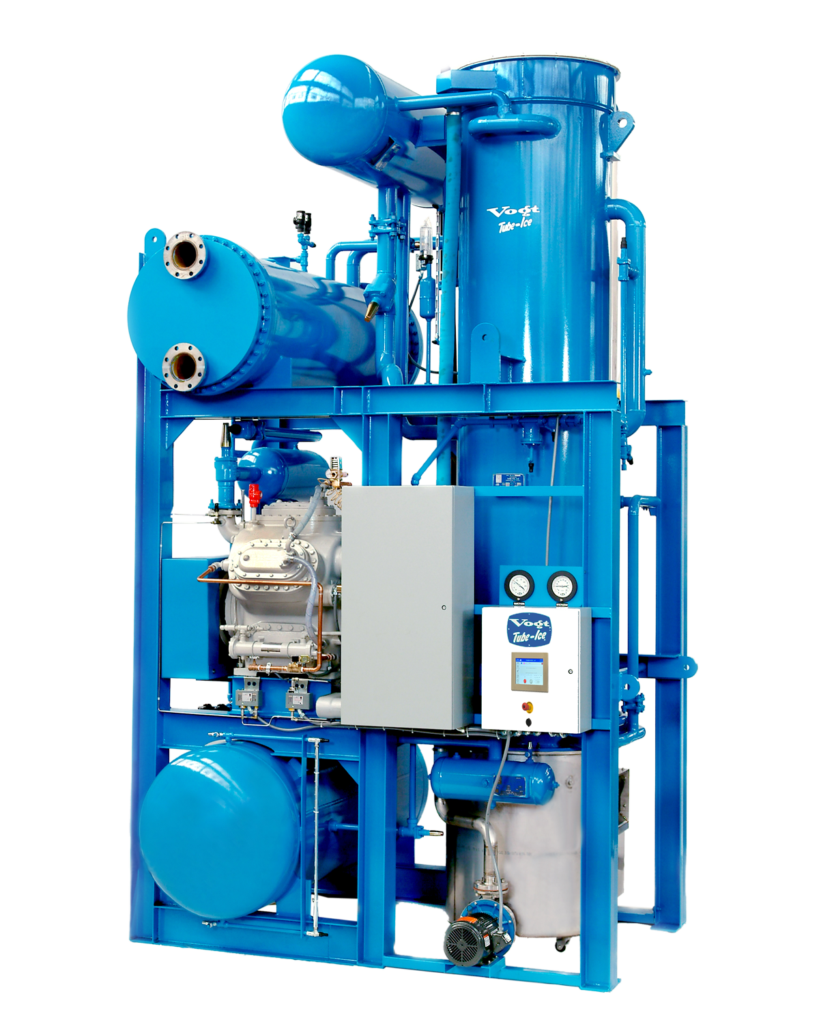

The P34A Series with a capacity of 50 tons of ice per day provides an alternative for producing large quantities of ice without the need of a central refrigeration plant. The P34A is a self contained water-cooled machine for operation with ammonia (P34A) and will provide you with many years of dependable service.
Heavy-duty industrial construction, automatic operation, energy efficiency and the best warranty in the business make the Vogt P34A Series the only “clear” choice for your ice making needs.
Features
Options
Ice Sizes
Downloads
Features
Standard Features
- 25 Year evaporator warranty
- Self contained packaged unit
- Factory tested and certified
- Voltage – 460V,3Ph,60Hz
- Control voltage – 230V,1Ph,60Hz
- UL 508A Industrial Control Panel
- Compressor soft start
- Ammonia refrigerant operation
- Mycom compressor standard
- Water-cooled condenser
Options
Options
- Voltage – 230V, 3Ph, 60Hz (P34A only)
- Voltage – 400V, 3Ph, 50Hz
- Voltage – 200V, 3Ph, 50Hz (P34A only)
- Voltage – 575V, 3Ph, 60Hz
- PLC control panel (programmable logic controller)
- Power monitor
- Cutter for 1-1/2″ long ice
- cutter for crush ice
- Vilter compressor (required for CE)
- Stainless steel condenser tubes
- “CE” approval (400V, 50Hz only)
- Canadian Registration Number (CRN)
Ice Sizes
Standard Ice Sizes
- Tube-Ice: Approximately 7/8″ diameter x 1″ long (P34A-1″ models)
- Tube-Ice: Approximately 1 1/8″ diameter x 1″ long (P34A 1-1/4″ models)
- Tube-Ice: Approximately 1 3/8″ diameter x 1″ long (P34A 1-1/2″ models)

Downloads
Downloads
Spec Sheet
Parts List: P34A, P34F
Warranty Information
Service Manual
