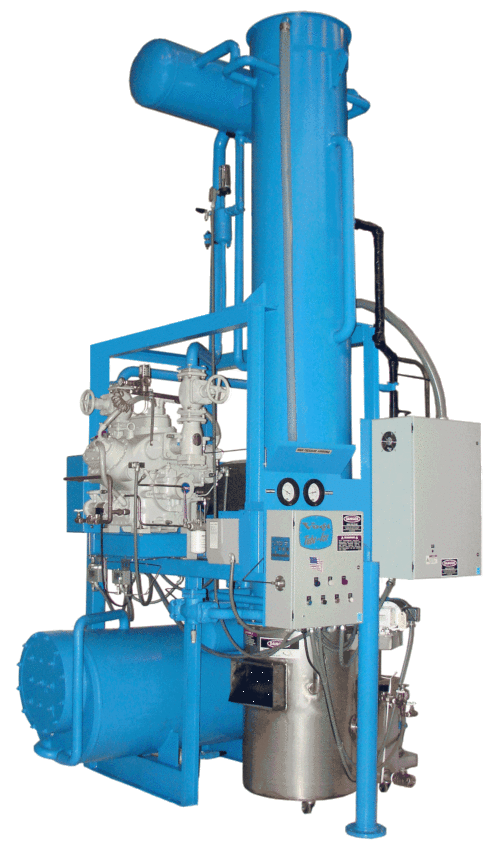

P24A/P24F

The P24 Series with a capacity of 25 tons of ice per day is the preferred ice machine for thousands of packaged ice factories worldwide. Available as a self contained water cooled machine for operation with ammonia or R404a refrigerant, the P24A/F will provide you with many years of dependable service. Heavy-duty industrial construction, automatic operation, energy efficiency and the best warranty in the business make the Vogt P24A/F Series the only “clear” choice for your ice making needs.

P24A/P24F Standard Features:
Self Contained Packaged Unit
Factory Tested and Certified
25 Year Evaporator Warranty
Voltage – 460v.,3p.,60hz.
Control Voltage – 230v.,1p.,60hz
UL 508A Industrial Control Panel
Compressor Soft Start
R404a or Ammonia Refrigerant
Mycom Compressor Standard on P24A
Carlyle Compressor Standard on P24F
Water-Cooled Condenser
R404a refrigerant charge included in P24F (except CE units)
Stainless Steel Condenser Tubes

P24A/P24F Standard Ice Size:
Tube-Ice approximately 7/8″ Diameter X 3/4″ Long (P24-1″ models)
Tube-Ice approximately 1 1/8″ Diameter X 1″ Long (P24 1-1/4″ models)
Tube-Ice approximately 1 3/8″ Diameter X 1″ Long (P24 1-1/2″ models)
Crushed Ice 3/16″ to 1/4″ Thick on all models (approximately 32 lbs./cubic foot)

P24A/P24F Options:
Voltage – 230v.,3p.,60hz.
Voltage – 400v.,3p.,50hz.
Voltage – 200v.,3p.,50hz.
Voltage – 575v.,3p.,60hz.
PLC Control panel (programmable logic controller)
Cutter for 1-1/2” long ice
Cutter for crushed ice
Vilter compressor on P24A
Power monitor
Canadian Registration Number (CRN)
