P34FL Series

50 tons per day

P34FL Series

50 tons per day

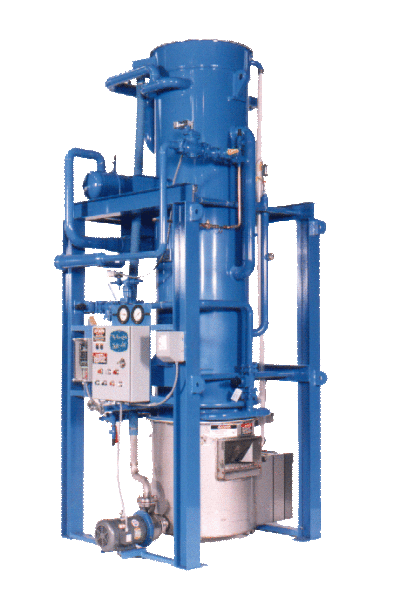

The P34FL Series with a capacity of 50 tons of ice per day is a low-side Tube-ice machine designed to operate with a dedicated R404A high-side or on a central refrigeration system. The P34FL will provide you with many years of dependable service. Heavy-duty industrial construction, automatic operation, energy efficiency and the best warranty in the business make Vogt Tube-ice machines the only “clear” choice for your ice making needs.

Standard Features

  • 25 Year Evaporator Warranty
  • Up to 50 tons of ice per day
  • Voltage – 230V, 3Ph, 60Hz
  • Control voltage – 230V, 1Ph, 60Hz
  • UL 508A Industrial Control Panel
  • Manufactured in accordance with A.S.M.E. code
  • Standard ice length: 1″

Options

  • Voltage – 460V, 3Ph, 60Hz
  • Voltage – 400V, 3Ph, 50Hz
  • Voltage – 575V, 3Ph, 60Hz
  • 120V controls
  • PLC control panel (programmable logic controller)
  • Power monitor
  • Cutter for 1-1/2″ long ice
  • Cutter for crushed ice
  • Cutterless option
  • All stainless steel
  • “CE” approval (400V, 50Hz only)
  • Canadian Registration Number (CRN)
  • R22 operation
  • R507 operation

Standard Ice Sizes

  • Tube-Ice: Approximately 7/8″ diameter x 1″ long (P34FL-1″ models)
  • Tube-Ice: Approximately 1 1/8″ diameter x 1″ long (P34FL 1-1/4″ models)
  • Tube-Ice: Approximately 1 3/8″ diameter x 1″ long (P34FL 1-1/2″ models)

Downloads

Spec Sheet
Parts List
Warranty Information
Service Manual
