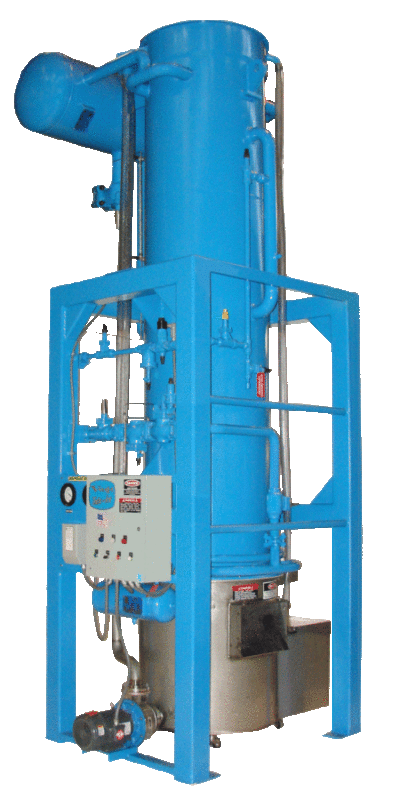

The P34AL Series with a capacity of 50 tons of ice per day is an ammonia low-side Tube-Ice machine designed to operate with a dedicated ammonia high-side or on a central refrigeration system. The P34AL will provide you with many years of dependable service. Heavy-duty industrial construction, automatic operation, energy efficiency and the best warranty in the business make Vogt Tube-Ice machines the only “clear” choice for your ice making needs.
P34AL Standard Features:
25 Year Evaporator Warranty
Up to 50 tons of ice per day
Voltage – 230v.,3p.,60hz.
Control Voltage – 230v.,1p.,60hz
UL 508A Industrial Control Panel
Ammonia flooded operation
Manufactured in accordance with A.S.M.E. code
Standard ice length 1“ P34AL
Standard Ice Size:
Tube-Ice approximately 7/8“ Diameter X 3/4“ Long (P34AL-1“ models)
Tube-Ice approximately 1 1/8“ Diameter X 1“ Long (P34AL 1-1/4“ models)
Tube-Ice approximately 1 3/8“ Diameter X 1“ Long (P34AL 1-1/2“ models)
Crushed Ice 3/16“ to 1/4“ Thick on all models (approximately 32 lbs./cubic foot)
Voltage -460 v.,3p.,60hz.
Voltage – 400v.,3p.,50hz.
Voltage – 575v.,3p.,60hz. 120v
Controls PLC Control panel (programmable logic controller)
Power monitor Cutter for 1-1/2“ long ice
Cutter for crushed ice
R.S. control valves
All stainless steel
“CE” Approval (400v, 50hz only)
Canadian Registration Number (CRN)
