Modular Series


Modular Series

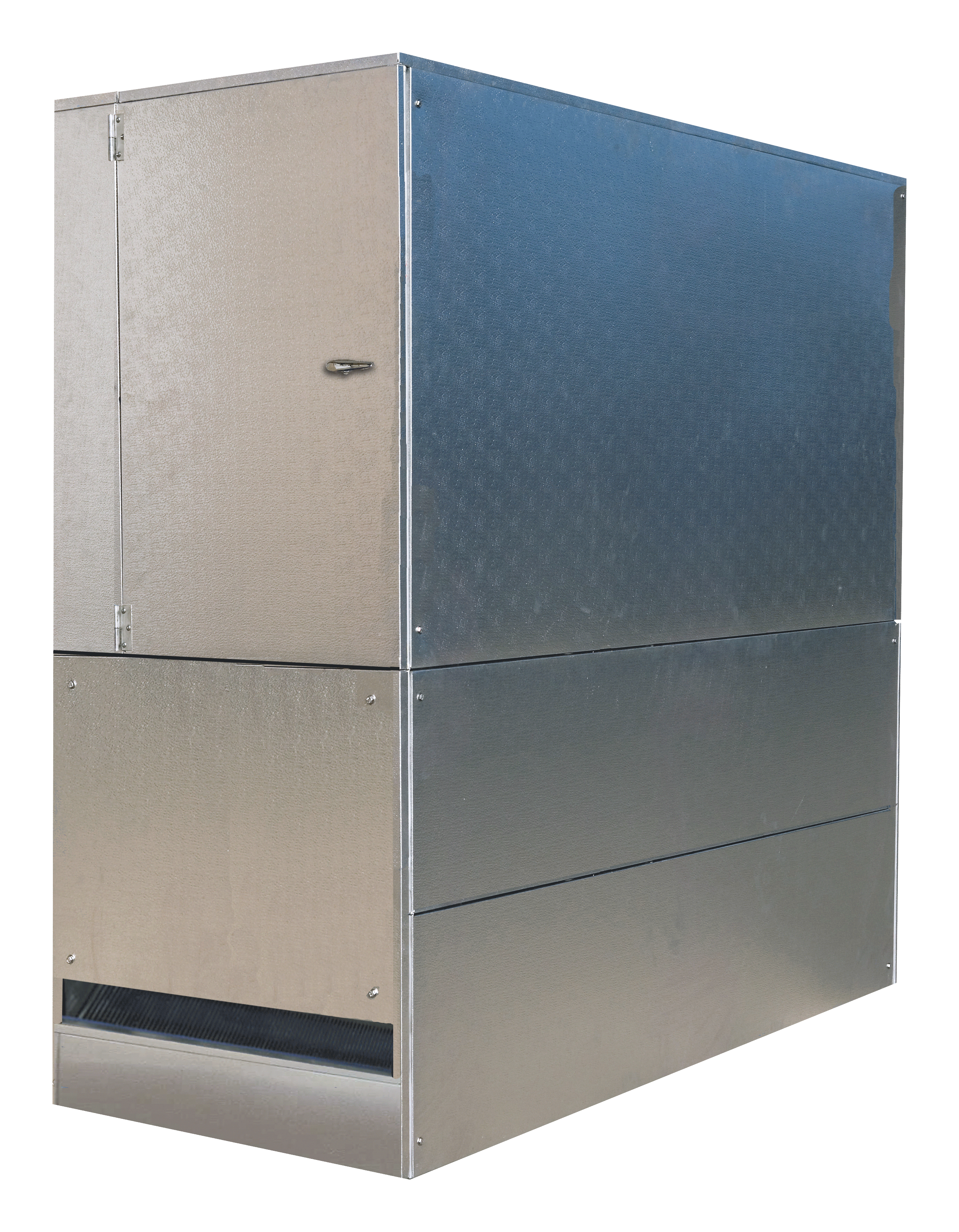

Vogt Turbo MHG series (Modular Hot Gas) are microprocessor controlled ice modules that can be combined to operate alone or as part of a sequenced modular ice making array for 25 tons per day ice to over 250 tons of ice per day. This ice discharges in 1/4″ to 3/4” plate fragmented ice which is moist on the surface but does not readily clump in storage. A single master control panel provides network accessibility for precisely monitoring and controlling ice making operations to meet capacity requirements. MHG series icemakers can be supplied to use ammonia (A) or Freon (F) refrigerants from a central refrigeration plant or a stand alone refrigeration system. Dedicated Freon standard systems are available for 25, 50 and 75 ton per day production modules.

Vogt Turbo MCL (modular C line) units are similar to MHG units but use a water defrost, water pre-chill operation instead of hot gas for the defrost harvest cycle. Individual modules produce 13 to 19 tons per day of 1/4” to 3/4” fragmented ice which is dry to touch and immediately ready to package or use which has become very popular in the Packaged Ice industry. Like MHG units, these can be assembled in a programmed sequenced array to produce ice over 250 tons per day.

Modular Series Standard Features:
Aluminum Stucco Embossed Front and Rear Panels
Voltage – 230v or 460v.,3p.,60hz. Power
Voltage – 120v.,1p.,60hz. Controls
Allen Bradley Micrologics PLC
Stainless Steel Evaporator Piping
Stainless Steel Upper and Lower Frame

Modular Series Options:
Voltage – 575v.,3p.,60hz. Power
Stainless Steel Front and Rear Panels
End Panel Kit (aluminum or stainless)
Power monitor (for 60hz.)
AB Ethernet Interface Module
Split Crating for Container/LTL Loading
Canadian Registration Number (CRN)
Export crating (ISPM-15 Rated)
Automation Direct PLC (Module only)
RS Control Valves
Base Frames / Headers for Skidding up to 6 Modules
Master Panels for Control of up to 18 Modules
Hot Gas/Liquid Strainer/Defrost Pressure Reg Kit (LR)
Liquid Line Strainer/Defrost Pressure Regulator (Flooded MHGA Only)
Surge Drum (Flooded MHGA Only)
